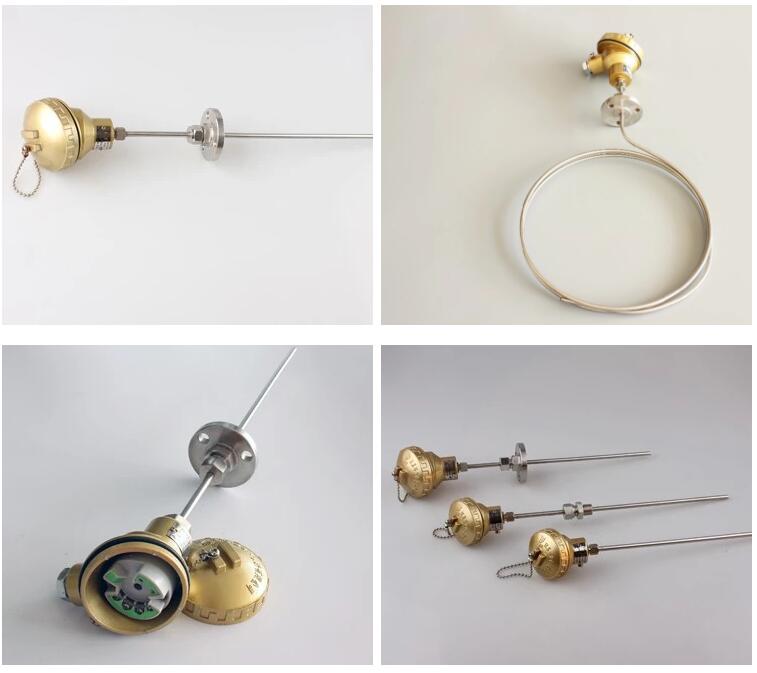

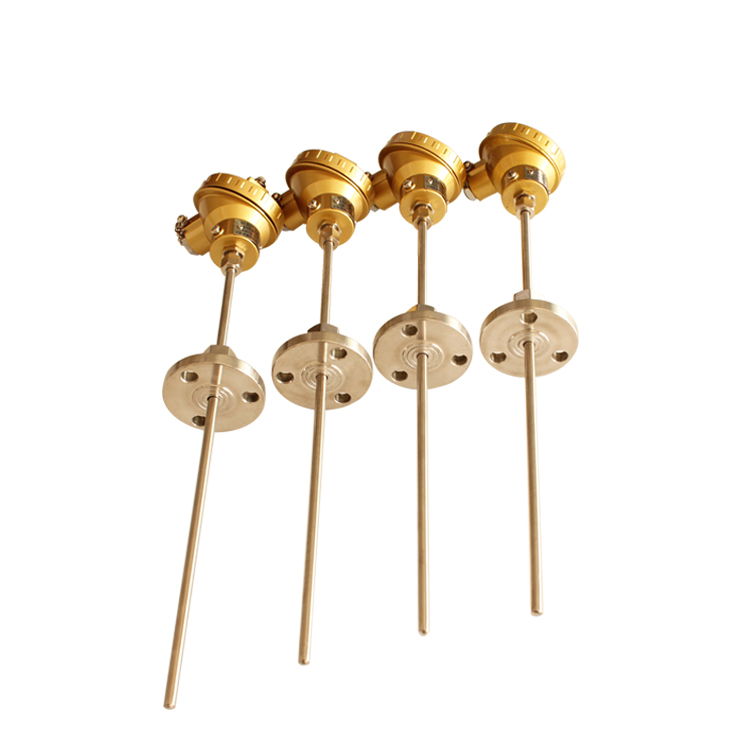

Industrial use waterproof flange armored thermocouple directly measures the temperature of liquid vapor and gaseous media from 0 ° C to 1300 ° C in various productions. Applications: Experimental equipment, industrial furnaces, heating boilers, heating equipment, electricity, chemicals. Protective sleeve: stainless steel 304, optional 316, wear protection and so on.

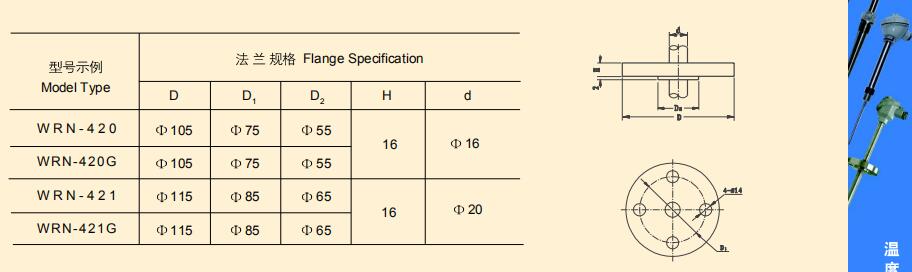

We may provide other flange as users demand,please contact us about Industrial use waterproof flange armored thermocouple.
|
category
|
|
Index number
|
Casing outer diameter mm
|
Common temperature °C
|
High operating temperature °C
|
Allowable deviation
|
|
|
Measuring range °C
|
Allowable difference
|
||||||
|
Platinum rhodium 10-platinum
|
WRPK
|
S
|
≥Φ3
|
1100
|
1200
|
0-1200
|
±1.5°C or ±1.5%t
|
|
Nickel-chromium-copper-nickel
|
WREK
|
E
|
≥Φ3
|
600
|
700
|
0-700
|
±2.5°C or ±0.75%t
|
|
Nickel-chromium-nickel silicon
|
WRNK
|
K
|
≥Φ3
|
800
|
950
|
0-900
|
±2.5°C or ±0.75%t
|
|
Copper-copper nickel
|
WRCK
|
T
|
≥Φ3
|
350
|
400
|
Less than -200(-40-350)
|
±0.75%t
|
|
Iron-copper nickel
|
WRFK
|
J
|
≥Φ3
|
800
|
600
|
0-600
|
±2.5°C or ±0.75%t
|
